GPS Antenna 313-A

این محصول را پسندید؟
به دوستانتان پیشنهاد می دهید؟

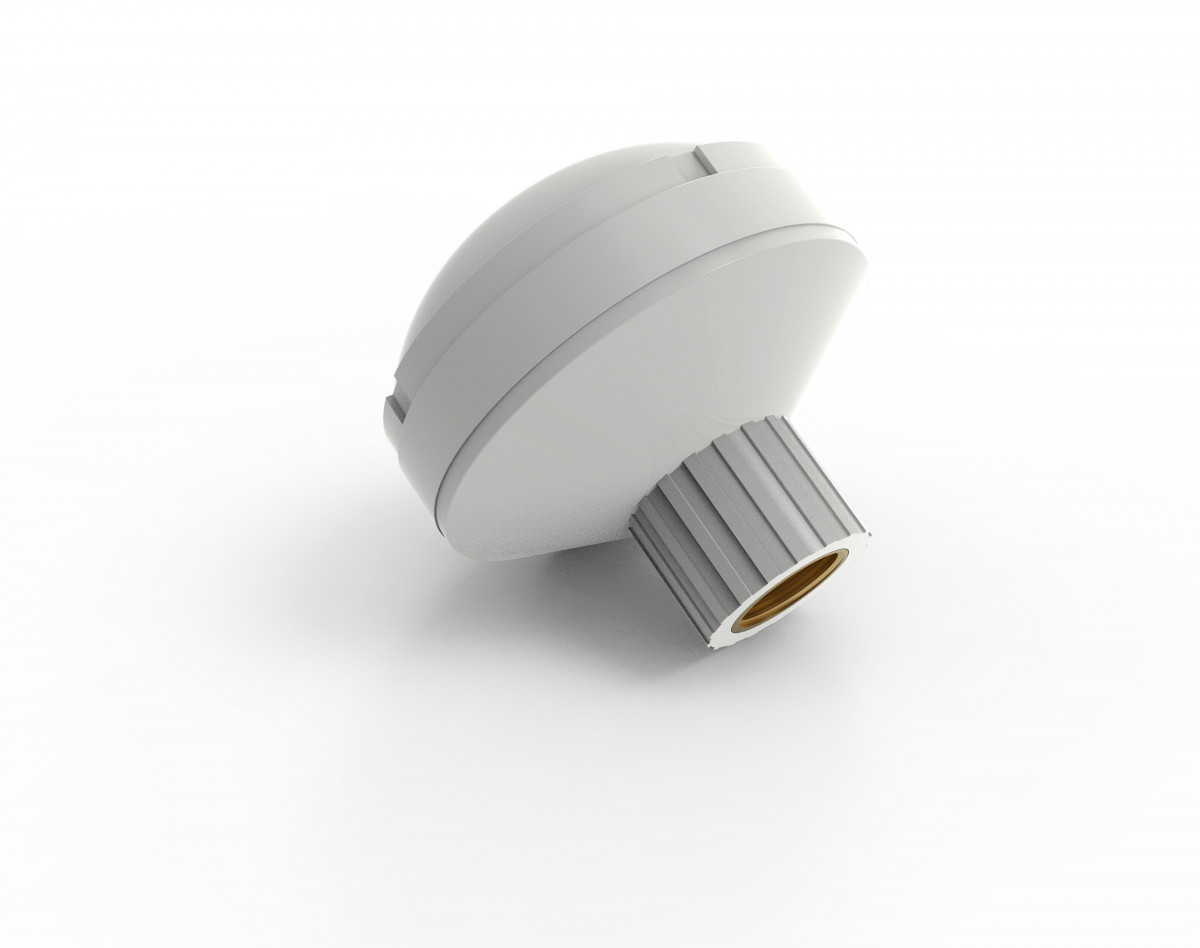

Built to take advantage of the GLONASS system/constellation of satellites as well as standard GPS, this robust external antenna is packaged in a low-profile water-resistant housing

External GPS/GLONASS antennas provide increased flexibility and installation options as well as the potential for enhanced reception of GPS/GLONASS signal for those products with built-in GPS/GLONASS antennas

مطالعه بیشتر ...
افزودن به سبد خرید
هیچ نظری ثبت نشده نوشتن یک نظر گزارش محتوای نامناسب
Implementation Feature

GPS+GLONASS

 GNSS

12~24 V DC

 Power Supply

GPS L1 1575.42MHz C/A Code

GLONASS L1 1598.0625~1605.375MHz C/A Code

Receiver Type

 Acquisition: -148dBm

 Re-acquisition: -160dBm

Tracking: -165dBm

Sensitivity

 Cold start: 15s typ. @-130dBm

 Warm start: 5s typ. @-130dBm

Hot start: 1s typ. @-130dBm

TTFF (EASY enabled)

Cold start (Autonomous): 35s typ. @-130dBm

Warm start (Autonomous): 30s typ. @-130dBm

Hot start (Autonomous): 1s typ. @-130dBm

TTFF (EASY disabled)

<2.5m CEP @-130dBm

Horizontal Position



Accuracy (Autonomous)

Up to 10Hz, 1Hz by default

Max Update Rate

Typical accuracy <15ns (Time service is not supported)

Time pulse width 100ms

Accuracy of 1PPS Signal

Without aid: 0.1m/s

Velocity Accuracy

Without aid: 0.1m/s²

Acceleration Accuracy

RG 58 or others

Dynamic Performance

RS422/RS232 TX only

Supports baud rate; 4800, 38400, 115200(10 Hz), and 115200(1 Hz)

Serial Port

Normal operation: -20°C ~ +70°C

Storage temperature: -45°C ~ +110°C

Temperature Range

Size: 108 ×108 ×100mm

Weight: Approx. 300g (without cable)

Physical Characteristics
