GP-14

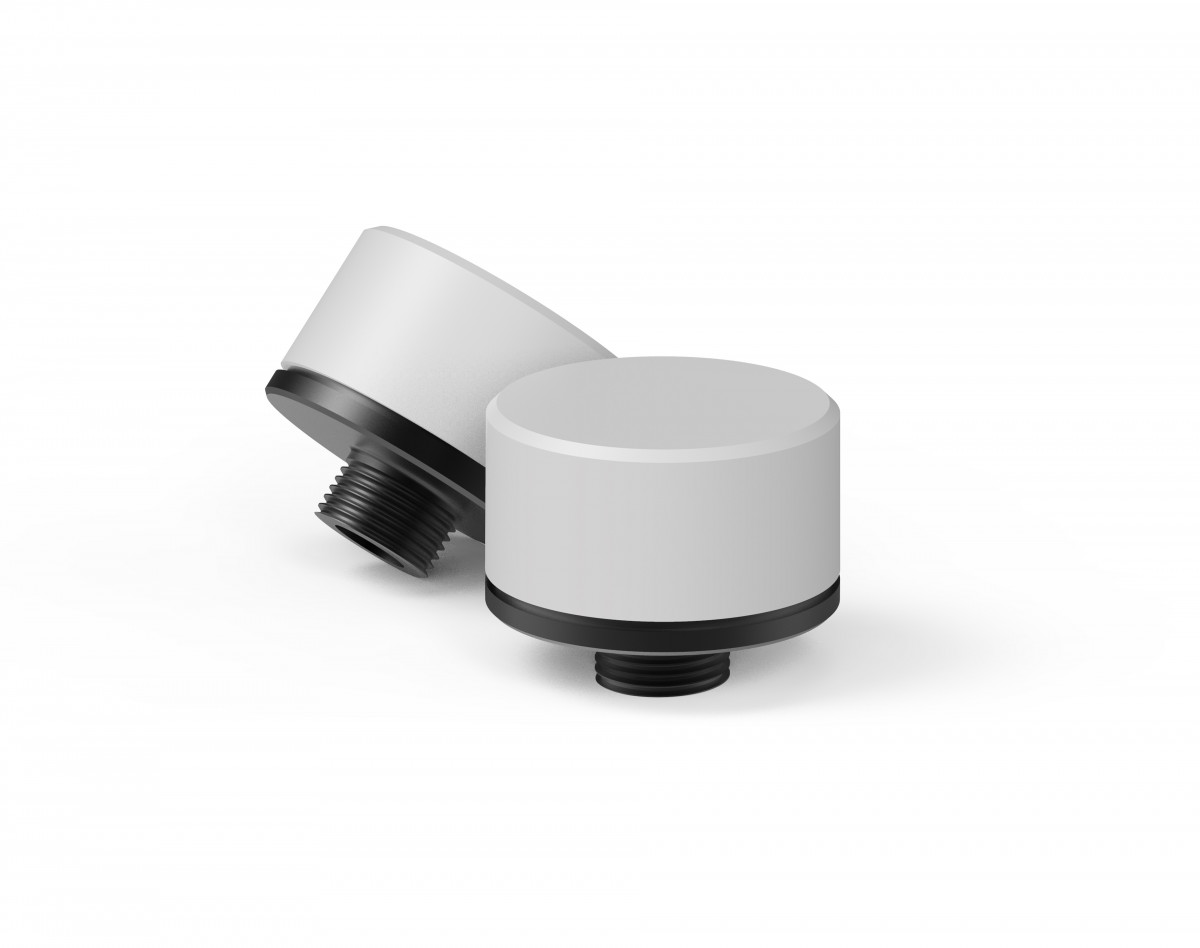

Built to take advantage of the GLONASS system/constellation of satellites as well as standard GPS, this robust external antenna is packaged in a low-profile water-resistant housing and provides 3 easy mounting solutions with brackets
External GPS/GLONASS antennas provide increased flexibility and installation options as well as the potential for enhanced reception of GPS/GLONASS signal for those products with built-in GPS/GLONASS antennas
مطالعه بیشتر ...| Implementation | Feature |
| Antenna |
| 1575 ±5 MHz, 1605 ±5 MHz | Center Frequency |
| CF ±5 MHz | Band Width |
| RHCP | Polarization |
| 5 dBiC (Zenith) | Gain |
| <1.2 | V.S.W.R |
| 50Ω | Impedance |
| LNA |
| 40 dBm | Gain |
| <2 dB | Noise Figure |
| 3~5 V DC | Supply Voltage |
| <35 mA | Current Consumption |
| <2.0 | V.S.W.R. |
| Mechanical |
| RG 58 or others | Cable |
| N or others | Connector |
| ABS | Radome Material |
| Screw, Bracket | Mounting Method |
| Environmental |
| -40°C to +85°C | Operating Temperature |
| Up to 95% | Relative Humidity |
| IP67 | Ingress Protection |
| 10 to 130Hz with 2mm amplitude 2 hours | Vibration |
| ROHS Compliant | Environmentally Friendly |
| ⚠ CAUTION |
| Do not install or store the antenna near strong magnets, including speakers. A strong magnetic field can damage the antenna |
